Vending Machine Card Dispensing Mechanism

Dispenser for prepaid cards
(credit cards, phone cards, calling cards, gift cards, etc…)

Technik’s card dispensing mechanisms are designed and manufactured using our reliable and proven feed belt concept.  This product can be expected to perform for extended periods with trouble-free performance.  Technik’s dispensing mechanisms dispense less-than-perfect cards since you are interested in dispensing, not trouble-shooting.

Technik offers customers several means of controlling mechanisms.  This includes a variety of control boards that have various capabilities depending on your application and your budget.  Furthermore, harnesses and power supplies are also available. Every sale is backed with a one-year warranty and toll-free service.

CR80 Card 1

CAPABLE OF DISPENSING A CR80 CARD INSIDE AN ENVELOPE OR A CR80 CARD WITH NO ENVELOPE.  THIS UNIT IS VERY DEPENDABLE AND WILL DO THE JOB DAY IN AND DAY OUT WITHOUT ISSUES.

  • DIMENSIONS: 11.5H, 4.2W, 7.9D
  • CAPACITY: 225 @ .030
  • CARD: CR80
  • ENVELOPE: 3.5 X 2.5 X .010 TO .060 THICK
  • CONTROL OPTIONS:
    • 2 CONTROL BOARDS

*DIMENSIONS IN INCHES

TECHNIK WILL CUSTOMIZE FOR SPECIAL APPLICATIONS AND SPACE LIMITATIONS.

CR80 Card 1 Sideways

Standard Features:

CAPABLE OF DISPENSING A CR80 CARD INSIDE AN ENVELOPE OR A CR80 CARD WITH NO ENVELOPE.  THIS UNIT IS VERY DEPENDABLE AND WILL DO THE JOB DAY IN AND DAY OUT WITHOUT ISSUES.

  • DIMENSIONS: 11.5H, 4.2W, 7.9D
  • CAPACITY: 225 @ .030
  • CARD: CR80
  • ENVELOPE: 3.5 X 2.5 X .010 TO .060 THICK
  • CONTROL OPTIONS:
    • 2 CONTROL BOARDS

*DIMENSIONS IN INCHES

TECHNIK WILL CUSTOMIZE FOR SPECIAL APPLICATIONS AND SPACE LIMITATIONS.

CR80 Card 2 Column

TECHNIK DEVELOPED THE CONCEPT OF DISPENSING MULTIPLE COLUMNS OF CARD FROM THE SAME MECHANISM TO PROVIDE AN ECONOMICAL AND FLEXIBLE UNIT.  THIS MECHANISM DISPENSES 2 COLUMNS OF DIFFERENT CR80 CARDS RELIABLY AND ECONOMICALLY.

  • DIMENSIONS: 18.5H, 5.75W, 5.88D
  • CAPACITY: 370 @ .030 PER COLUMN
  • CARDS: CR80 – 2 COLUMNS
  • CONTROL OPTIONS: NUMEROUS OPTIONS ARE AVAILABLE

*DIMENSIONS IN INCHES

TECHNIK WILL CUSTOMIZE FOR SPECIAL APPLICATIONS AND SPACE LIMITATIONS.

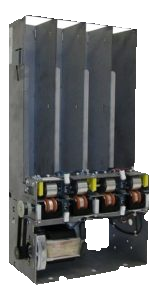

CR80 Card 4 Column

TECHNIK DEVELOPED THE CONCEPT OF DISPENSING MULTIPLE COLUMNS OF CARD FROM THE SAME MECHANISM TO PROVIDE AN ECONOMICAL AND FLEXIBLE UNIT.  THIS MECHANISM DISPENSES 4 COLUMNS OF DIFFERENT CR80 CARDS RELIABLY AND ECONOMICALLY.

  • DIMENSIONS: 18.5H, 10.5W, 5.75D
  • CAPACITY: 370 @ .030 PER COLUMN
  • CARDS: CR80 – 4 COLUMNS
  • CONTROL OPTIONS: NUMEROUS OPTIONS ARE AVAILABLE

*DIMENSIONS IN INCHES

TECHNIK WILL CUSTOMIZE FOR SPECIAL APPLICATIONS AND SPACE LIMITATIONS.

CR80 Card 4 Narrow

CAPABLE OF DISPENSING A WIDE RANGE OF PACKAGED CD’S AND DVD’S.  MANY CUSTOMERS DISPENSE ONLY THE PACKAGE, WHICH INCLUDES JEWELL CASES, PAPER-BOARD SLEEVES, AND PAPER SLEEVES.

  • DIMENSIONS: 18.5H, 5.75W, 8.75D
  • CAPACITY: 165 @ .030 PER COLUMN
  • CARDS: CR80 – 4 COLUMNS
  • CONTROL OPTIONS: NUMEROUS OPTIONS ARE AVAILABLE

*DIMENSIONS IN INCHES

TECHNIK WILL CUSTOMIZE FOR SPECIAL APPLICATIONS AND SPACE LIMITATIONS.

CR80 Card 8 Column

TECHNIK DEVELOPED THE CONCEPT OF DISPENSING MULTIPLE COLUMNS OF CARD FROM THE SAME MECHANISM TO PROVIDE AN ECONOMICAL AND FLEXIBLE UNIT WHILE OFFERING A MINIMUM FOOTPRINT.  THIS MECHANISM DISPENSES 8 COLUMNS OF DIFFERENT CR80 CARDS RELIABLY AND ECONOMICALLY.

  • DIMENSIONS: 18.5H, 10.75W, 8.75D
  • CAPACITY: 165 @ .030 PER COLUMN
  • CARDS: CR80 – 8 COLUMNS
  • CONTROL OPTIONS: NUMEROUS OPTIONS ARE AVAILABLE

*DIMENSIONS IN INCHES

TECHNIK WILL CUSTOMIZE FOR SPECIAL APPLICATIONS AND SPACE LIMITATIONS.
